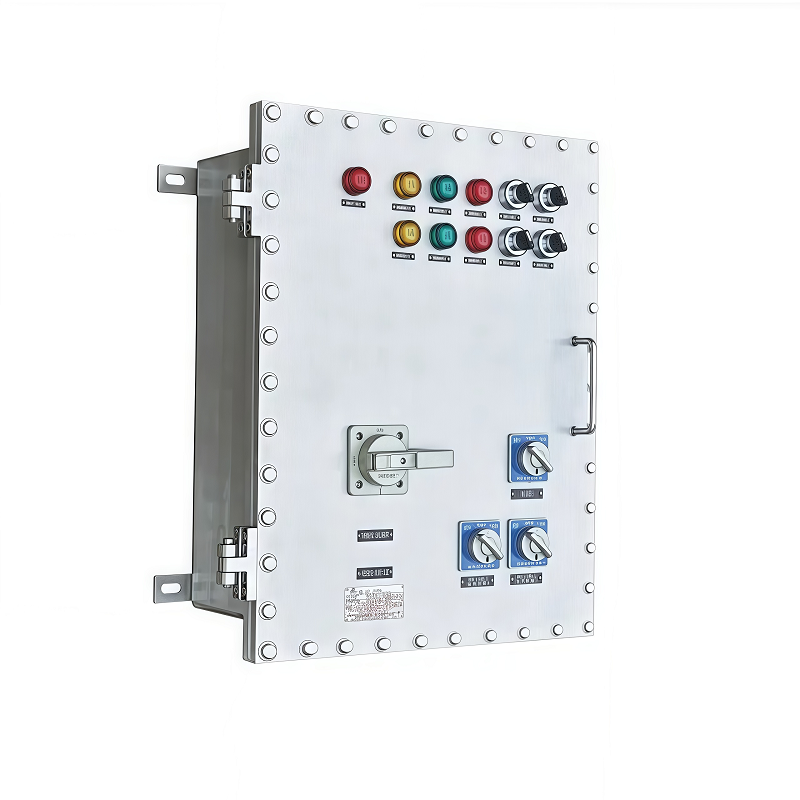

BXM(D)92- Series Explosion-proof Distribution Panel(Ex db IIB)

CONTACT US>>

PRODUCT DESCRIPTION

Applications:

  •  Explosion protection to CENELEC、EC、NEC.
  • Can be used in Zone 1 and Zone 2
  • Can be used in Zone 21 and Zone 22.
  • Can be used in Class l, Zone 1 and Zone 2,
  • Can be used in Class l, Division 2, Groups A, B, C, D.
  • Flameproof enclosure (Ex db IIB), which can be used as feed distribution equipment in control and distribution system(such as distribution box, switch box of main circuit .control box,terminal box or motor starting box etc.)
  • Internal wiring to the terminal is finished.
  • Equipped with specialized hinge structure. which can prevent the flameproof joints from damage when opening and closing the box, and greatly prolong the service life of box.

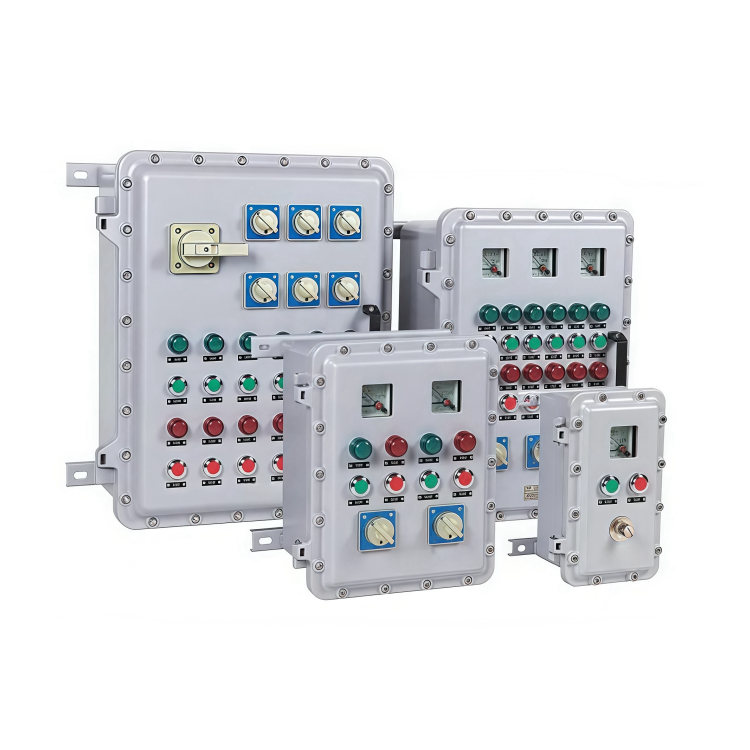

  • The boxes can be combined and installed freely to save space and meet the requirements of various distribution systems.
  • Special requirements on request.



Technical Parameters:

  • Explosion-proof Marking:

        Global(IECEX):Ex db IIBT Gb、Ex tb IIIC T℃ Db IP66

        Europe(ATEX):II 2 G Ex db IIBT□ Gb、II 2 D Ex tb IIIC T℃ Db IP66

  • Certificates:IECEX, ATEX, CU-TR, CNEX
  • Conformity to standards: EN 60079-0,EN 60079-1.EN 60079-7.EN 60079-31
  • Conformity to standards: IEC 60079-0,IEC 60079-1,IEC 60079-7.IEC 60079-31
  • Protection grade:IP66
  • Enclosure Material: Copper-free Aluminium Alloy or Stainless Steel
  • Exposed Fastener: Stainless Steel
  • Internal&external earthing:M6/M8
  • Ambient temperature: -60℃~+60℃
  • Mounting:Surface type (standard)Pedestal type (optional)
