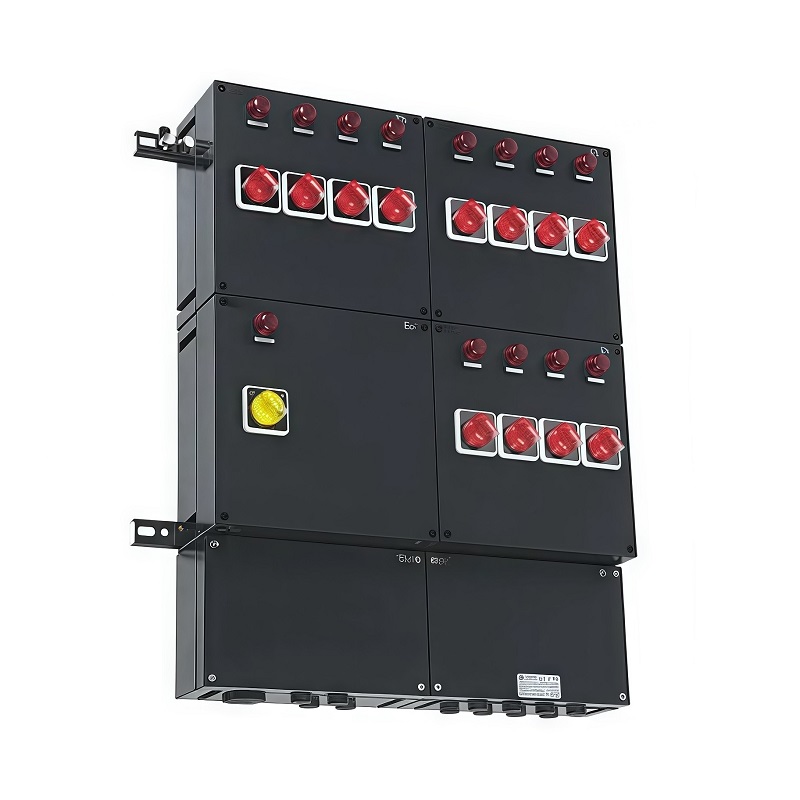

BXM(D)8050-Series Explosion-proof distribution panel(Ex d e IIC, GRP)

CONTACT US>>

PRODUCT DESCRIPTION

Applications:

  • Explosion protection to CENELEC、EC、NEC.
  • Can be used in Zone 1 and Zone 2
  • Can be used in Zone 21 and Zone 22
  • Can be used in Class l, Zone 1 and Zone 2
  • Can be used in Class l, Division 2, Groups A, B, C, D
  • Enclosure for modular combination (Ex e).
  • Main switch and branch switch are operated with external rotary actuator.
  • Internal wiring to the terminal is finished.
  • Enclosure: GRP (glass fibre-reinforced polyester resin)
  • Special requirements on request.



Technical Parameters:

  • Explosion-proof mark:

        Global(IECEX): Ex d e llC T5 or T4 Gb, Ex tb lIC T80℃ Db IP66

        Europe(ATEX): II 2 G Ex d e llC T5 or T4 Gb、II 2 D Ex tb lIC T80℃ Db IP66

  • Certificates: IECEX, ATEX, CU-TR, CNEX
  • Conformity to standards: EN 60079-0,EN 60079-1.EN 60079-7.EN 60079-31
  • Conformity to standards: IEC 60079-0,IEC 60079-1,IEC 60079-7.IEC 60079-31
  • Rated voltage: Max.690V AC 50/60Hz
  • Rated current: max.100A
  • Branch current: 1A, 2A,4A, 6A, 10A, 16A,20A, 25A, 32A, 40A, 50A, 63A
  • Protection grade:IP66
  • Enclosure Material: GRP (glass fibre-reinforced polyester resin)
  • Color: Black
  • Exposed Fastener: Stainless Steel
  • Internal&external earthing: M6/M8
  • Ambient temperature: -20℃~+40℃(T5), -20℃~+55℃(T4)
  • Entry direction: Bottom
  • Mounting: Surface type (standard)
