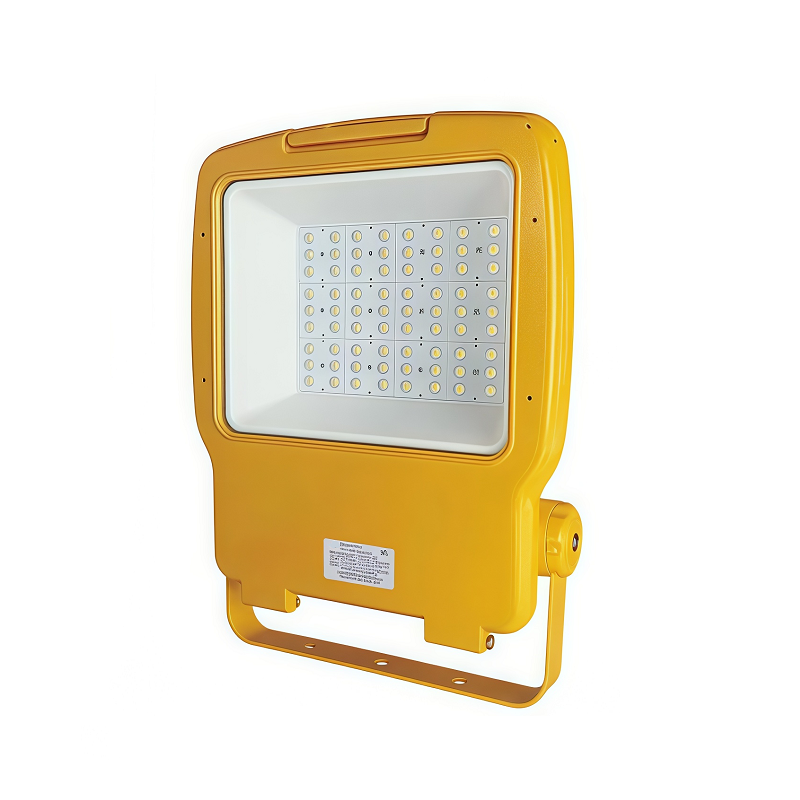

BAT95 Series Explosion-proof Led floodlight

CONTACT US>>

PRODUCT DESCRIPTION









Applications:

  • Explosion protection to CENELEC、IEC、NEC.
  • Can be used in Zone 2
  • Can be used in Zone 22
  • Can be used in Class l, Zone 2
  • Can be used in Class l, Division 2, Groups A, B, C, D
  • Applicable lamp and power (max.300W)LED:80W, 120W, 240W, 300W
  • International brand white light LED, reasonable arrangement of multi LED, high lighting efficiency and long service life.
  • Two types of light distribution: spotlight and floodlight, which can be selected on request
  • Standard luminaries equip with 60° lens, 30° lens which is optional,please indicate when placing an order.
  • Low-maintenance due to long service life is up to 100,000 operating hours.
  •

Technical Parameters:

  • Explosion-proof mark:

         Global(IECEX): Ex nR IIC T1) Gc, Ex tc IIIC T1)  Dc IP66

         Europe(ATEX): II 3 G Ex nR IIC T1) Gc,  II 3 D Ex tc IIIC T1)  Dc IP66

  • Certificates:IECEX, ATEX, CU-TR, CNEX
  • Conformity to standards: EN 60079-0,EN 60079-15,EN 60079-31
  • Conformity to standards: IEC 60079-0, IEC 60079-15, IEC 60079-31
  • Protection grade:IP66
  • Enclosure Material: Copper-free Aluminium Alloy, powder coated surface
  • Exposed Fastener: Stainless Steel
  • Rated voltage: 100-277V AC 50/60Hz, ,130~250V DC
  • Rated power: 80W, 120W, 150W, 200W, 240W, 300W
  • Colour temperature: 5000K(Nature white is available in general. Warm white is optional)
  • Colour rendering index (Ra): ≥80
  • Ambient temperature: -40℃~+55℃
  • Cable entries: 1-M20x1.5
  • Terminal: 3 x 1.5~4mm’(L+N+PE)
