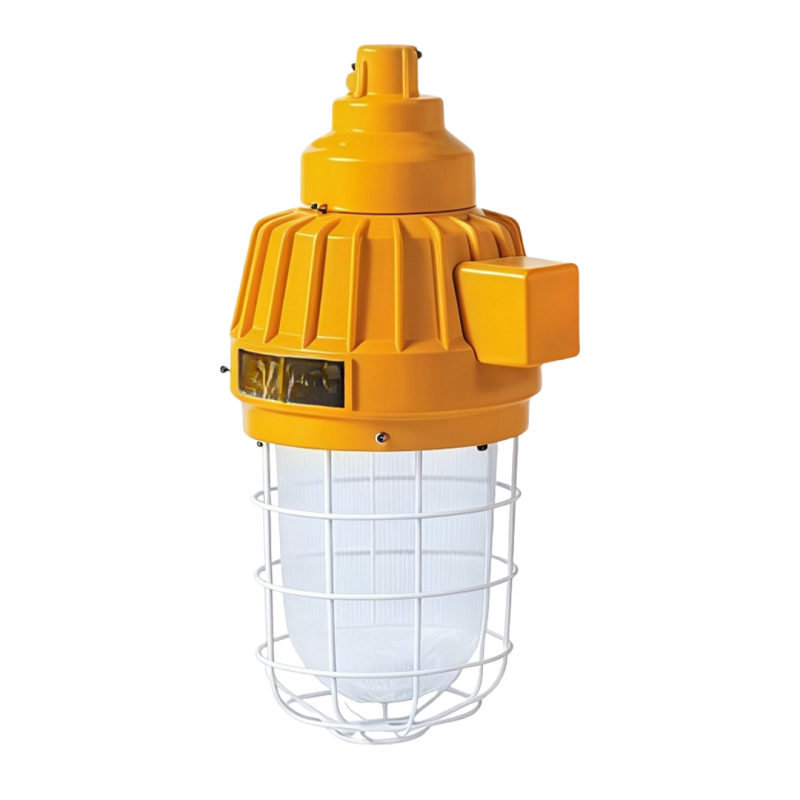

BAD Series Explosion-proof Light Fixture

CONTACT US>>

PRODUCT DESCRIPTION

Applications:

  • Explosion protection to CENELEC、IEC、NEC.
  • Can be used in Zone 1 and Zone 2
  • Can be used in Zone 21 and Zone 22
  • Can be used in Class l, Zone 1 and Zone 2
  • Can be used in Class l, Division 1, Groups A, B, C, D
  • Three enclosure types: 150, 250, 400.
  • Integral control gear, easy installation and maintenance.
  • Wireless connection between body and top cover, easy installation and maintenance.
  • Explosion-proof trigger, rapid starting, stable performance and long service life.
  • Toughened glass cover resistant to temperature changes.

Technical Parameters:

  • Explosion-proof mark:

        Global(IECEX): Ex db IIC T4 or T3 Gb, Ex tb IIIC T130℃ or T190℃ Db IP66

        Europe(ATEX): II 2 G Ex db IIC T4 or T3 Gb, II 2 D Ex tb IIIC T130℃ or T190℃ Db IP66

  • Certificates:IECEX, ATEX,CU-TR, CNEX
  • Conformity to standards: EN 60079-0,EN 60079-1.EN 60079-7.EN 60079-31
  • Conformity to standards: IEC 60079-0,IEC 60079-1,IEC 60079-7.IEC 60079-31
  • Protection grade:IP66
  • Enclosure Material: Copper-free Aluminum Alloy, powder coated surface, yellow (RAL1021)
  • Exposed Fastener: Stainless Steel
  • Rated voltage: 220-240V AC 50HZ (60HZ is optional)
  • Lamp holder: E27
  • Lamp power: Metal halide lamp (HIE): 70W, 100W, 150W, 250W, 400W
  • High pressure mercury lamp (HME): 80W, 125W, 250W, 400W
  • High pressure sodium lamp (HSE): 70W, 100W, 150W, 250W, 400W
  • Note: HPl European standard ballast is available in general
  • Power factor: ≥0.9
  • Earthing protection: M5(Internal&External)
  • Terminal: 3 x1.5~4mm²(L+N+PE)
  • Ambient temperature: T4 for Tamb:-60℃~+40℃(HIE, HME)

                                             T3 for Tamb:-60℃~+55℃(HIE, HME)

                                             T4 for Tamb: -60℃~+55℃ (HSE)

  • Suitable cable diameter: φ10-φ14 (mm)
